Spacecraft do not have to stay close to Earth to make important discoveries. Mission designers often choose special orbital regions where a spacecraft can maintain a useful relationship to the Sun and Earth. The Sun–Earth Lagrange points provide five such regions. Some are excellent for watching the Sun; others are better suited to sensitive telescopes studying distant objects.
Why Lagrange points matter
Observing the universe requires the right environment. Solar-monitoring spacecraft benefit from staying between the Sun and Earth, while infrared telescopes need a reliably cold view of deep space. Some Lagrange regions let engineers design orbits that keep a spacecraft in a convenient orientation relative to the larger bodies in the system.
These locations are not shortcuts that cancel gravity. They offer useful orbital geometry, and engineers still have to consider stability, communications, eclipses, navigation and propellant use.
How Lagrange points work
The Sun and Earth both exert gravity on a small spacecraft. In a reference frame rotating with Earth around the Sun, there are five positions at which the gravitational and orbital effects balance in a special way. An object near one of these points can stay approximately aligned with the Sun–Earth system as it moves around the Sun.
The precise arrangement depends on the pair of massive bodies being considered. The Earth–Moon system has its own five Lagrange points, separate from the five defined by the Sun and Earth.
The five Sun–Earth Lagrange points
L1 lies between Earth and the Sun and is useful for observing solar activity before solar wind reaches Earth. L2 is beyond Earth on the side away from the Sun and supports deep-space observatories. L3 lies on the far side of the Sun, opposite Earth. L4 and L5 are approximately 60 degrees ahead of and behind Earth in its orbit.
The three points along the Sun–Earth line—L1, L2 and L3—are dynamically unstable. By contrast, L4 and L5 can be stable to small disturbances in the simplified three-body model under appropriate mass conditions.
Why Webb observes near L2
Webb studies faint infrared light. To do that, its instruments must remain extremely cold. Operating near L2 allows Webb to keep its large sunshield oriented toward the Sun, Earth and Moon, helping to protect the telescope from their heat and scattered light.
Being near L2 does not place Webb in Earth’s shadow or make the spacecraft motionless. It follows a designed orbit around the region while traveling around the Sun with Earth. For more information about the observatory, visit our space missions guide.
Halo orbits and station-keeping

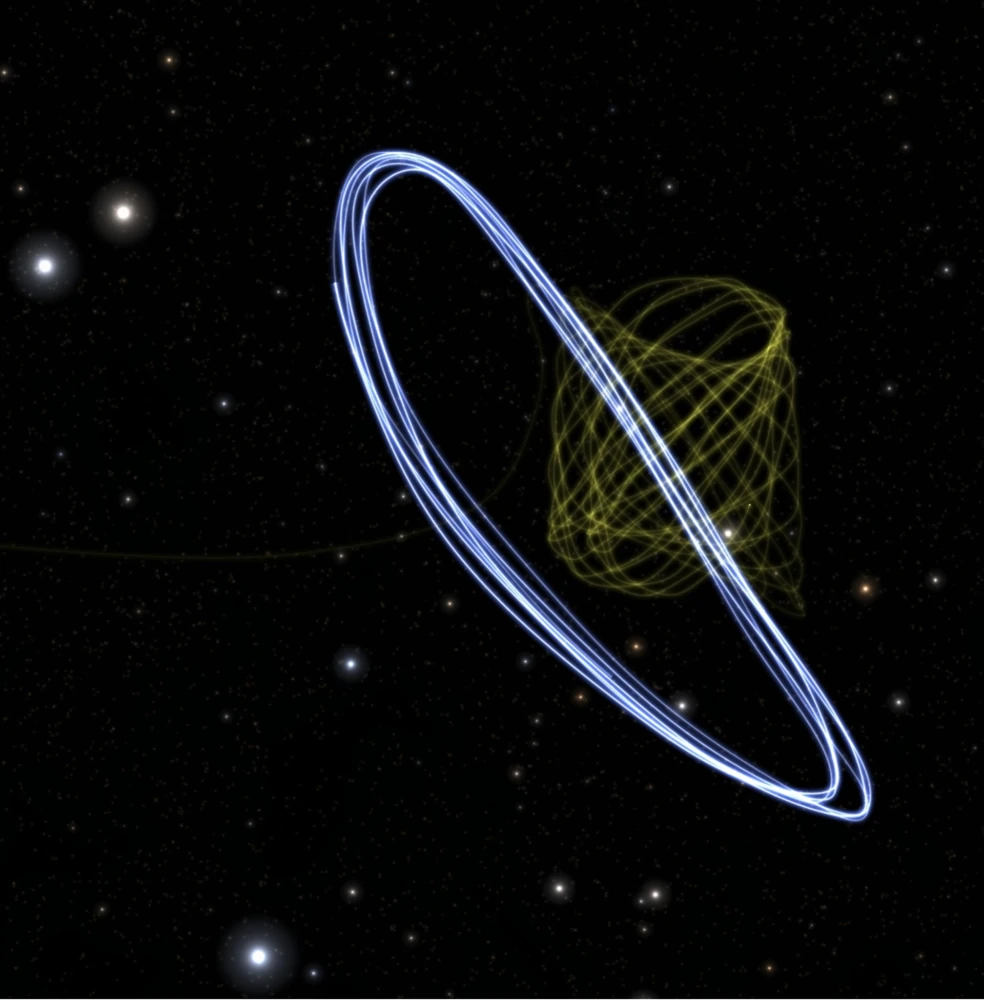

Webb follows a broad three-dimensional path called a halo orbit around L2 rather than sitting exactly at the mathematical point. Its orbit takes roughly six months to complete. This arrangement helps Webb avoid prolonged eclipses, maintain power and keep the spacecraft’s thermal configuration predictable.
Because L2 is not naturally stable, the spacecraft periodically performs small orbit-correction maneuvers, called station-keeping. Such adjustments are expected parts of the mission, not signs that the observatory has left its operating region.
Other missions that use Lagrange regions
Webb is not the only mission to use these special regions. Solar monitoring missions including NASA’s Advanced Composition Explorer and the NASA/NOAA Deep Space Climate Observatory have operated near Sun–Earth L1. The European Space Agency’s Gaia observatory conducted its stellar survey near L2, and ESA’s Euclid space telescope also operates around the L2 region.
Different missions do not occupy exactly the same path. Each has its own orbit size, orientation and navigation plan based on scientific goals and engineering constraints.
What Lagrange points do not do
A Lagrange point is not a solid destination, a zero-gravity zone or a place where spacecraft remain without any attention. Mission planners choose an orbit around a region and then account for perturbations from other bodies, sunlight pressure and imperfect navigation.
Even at an advantageous location, instruments still need shielding, communications equipment and an active spacecraft operations team. Orbital mechanics can make the job easier, but it cannot replace spacecraft engineering.
Frequently Asked Questions
What is a Lagrange point?
It is one of five special positions in a two-body orbital system where gravity and orbital motion allow a small object to stay approximately aligned with the larger bodies.
How many Sun–Earth Lagrange points are there?
There are five: L1, L2, L3, L4 and L5.
How far is L2 from Earth?
Sun–Earth L2 is approximately 1.5 million kilometers from Earth, in the direction away from the Sun.
Does Webb sit exactly at L2?
No. Webb follows a large halo orbit around the L2 region.
Why is L2 useful for infrared telescopes?
It helps keep the Sun, Earth and Moon on the same general side of the telescope, allowing a sunshield to reduce incoming heat and light.
Are Lagrange points stable?
L1, L2 and L3 are unstable in the idealized model; L4 and L5 can be stable under appropriate conditions.
